品牌:HX
直径（D):12mm
厚度（T):6mm
脚距（F):9.5mm
起订:100PCS
供应:1000000000000PCS
发货:3天内
发送询价
Specification of High Voltage Ceramic Disc Capacitor
|
Model
型号
|
CT82-6KV-D12-F9.5-102K
|
Color
颜色
|
Dark Blue
深蓝
|
|||
|
Condition of Testing
试验条件
|
Frequency
频率
|
Temperature
温度
|
Humidity
湿度
|
|||
|
1KHZ
|
22℃
|
70%
|
||||
|
Static Capacitance
容量
|
1000PF
|

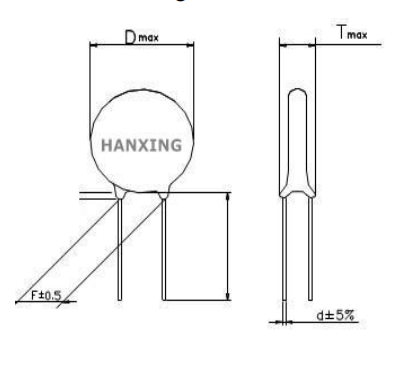

Outline Size
 |
||||
|
Withstand Voltage
耐压
|
≥9KV
|
|||||
|
Capacitance Range
容量范围
|
±10%
|
|||||
|
Dissipation
损耗角
|
≤1%
|
|||||
|
Insulation Resistance
绝缘电阻
|
≥100000MΩ
|
|||||
|
Temperature
Characteristics
温度特性
|
Y5T
|
|||||
|
Operating Temperature
工作温度
|
-25℃~+85℃
|
Pitch (F)
脚距
|
9.5±0.3mm
|
|||
|
Diameter× Thickness
(MAX)直径厚度
|
12×6mm
|
Diameter of Lead Wire
引出线直径
|
0.6±0.02mm
|
|||
|
Length of Encapsulated Lead Wire (MAX)
包封脚长
|
3 mm
|
Length of Lead Wire
引线长度
|
25＋/- 2 mm
|
|||
|
Application
应用
|
Indispensable components for high voltage or the UHF instruments, machinery, X-ray machine, precision type instrument, medical equipment, aerospace, high voltage generator, anion generator, voltage regulator, electric power equipment, meters, home appliances, electrostatic paint spray equipment, military equipment, detector equipment, many other products and industrial applications.
|
|||||
CT82系列陶瓷电容器具有超高电压和超高工频的特性，局放低，内阻小。
